As is well known, the choice of pile foundation scheme directly affects the economy, safety, and construction efficiency of a project. In the construction project of the Energy Storage Battery Management System Intelligent Manufacturing Center on Renhe Street, Yuhang District, Hangzhou, the use of screw-lock special-shaped solid square piles instead of traditional cast-in-place piles achieved a comprehensive cost saving of nearly 9 million yuan (actual savings during the scheme optimization stage were even higher), while also achieving good results in terms of bearing capacity, construction efficiency, and safety.Saving Nearly 300 Yuan per Meter
In traditional understanding, cast-in-place piles are widely used due to their strong adaptability. The original scheme planned to use 600+700 bored cast-in-place piles. After recommendation by the Zhaodi technical team, they were changed to 450+500 special-shaped solid square piles. Compared with the original design, the economic advantage is a "cliff-like" lead. Considering both the main building and the basement, the entire project saved a total cost of 8.9209 million yuan, a cost reduction of nearly 9 million yuan, creating significant economic value for the owner.Comparison of Pile Foundation Costs at Optimization StageBehind the cost advantage is the full-chain cost optimization of special-shaped square piles.- At the material level, special-shaped square piles use high-strength concrete, and their prefabricated nature greatly reduces complex on-site processes such as concrete pouring and curing, as well as labor input. The variable cross-section design of the pile body enhances side friction while also reducing material usage;- At the construction level, the screw-lock mechanical connection eliminates welding processes, reducing the construction cost per pile and improving pile splicing efficiency, thereby shortening the schedule and reducing time-related costs;- In terms of pile cap cost, the reduced pile diameter of special-shaped square piles leads to smaller pile spacing, which not only saves concrete material but also reduces costs for reinforcement, formwork (including brick胎膜), and soil excavation, transportation, and disposal.Upgraded Safety Performance
Double Improvement in Bearing Capacity and Reliability
The prerequisite for economy is absolute safety. Through structural innovation and material upgrades, special-shaped solid square piles achieve a double breakthrough in bearing capacity and reliability.Calculated Ra Values of 500 Solid Special-Shaped Square Pile and 700 Cast-in-Place Pile From a mechanical design perspective, the pile body adopts a longitudinal variable cross-section design. This "wedge-shaped interlocking" structure increases the contact area between the pile body and soil by 15%-20%, and the side friction resistance is 10%-30% higher than that of traditional square piles.Calculated Ra Values of 450 Solid Special-Shaped Square Pile and 600 Cast-in-Place Pile The project test report shows that the ultimate compressive bearing capacity of the test pile reached 4200kN (2.2 times the design value of 1900kN), and the ultimate uplift bearing capacity was 1100kN. In the test, the maximum settlement at the pile top was only 26.88mm, far less than the 40mm limit specified in the Technical Code for Building Pile Foundations, and the uplift displacement of 25.92mm showed no signs of failure, fully proving the reliable performance of special-shaped square piles under complex geological conditions. Another guarantee of safety comes from the innovation in connection technology. The quality of steel reinforcement welding in traditional cast-in-place piles is greatly affected by human factors, while special-shaped square piles use screw-lock mechanical connections, achieving "foolproof" docking through high-strength bolts and embedded sleeves, with efficiency 3-5 times higher than traditional welding. This "welding-free, zero-error" connection method completely eliminates safety hazards such as welding hot cracks and stress concentration, and is particularly suitable for the geological conditions of Hangzhou where soft and hard soil layers alternate.Efficiency Increased by 80%

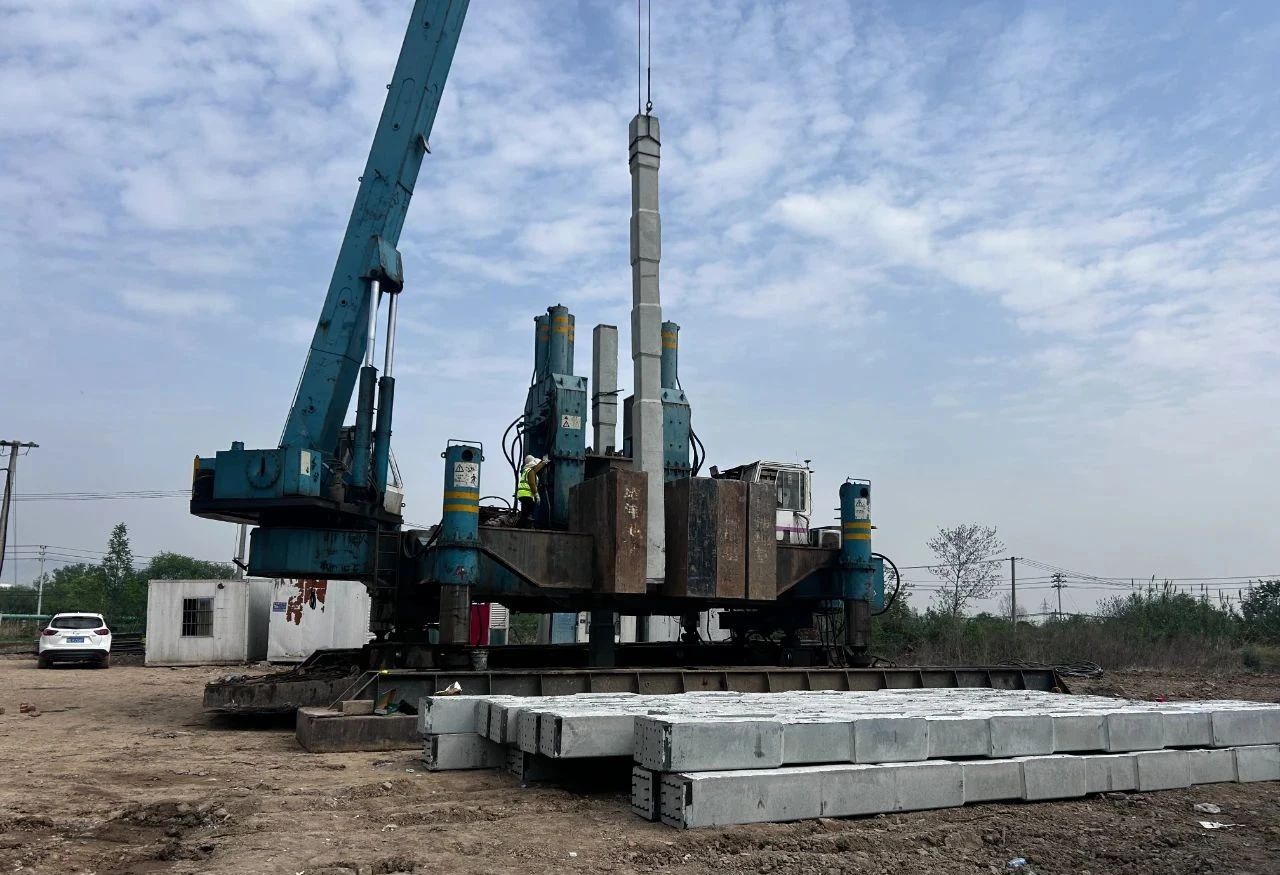

In modern engineering construction where schedule is efficiency, the construction convenience of special-shaped square piles has become another core competitiveness. If the project used cast-in-place pile technology, it would require multiple processes such as hole formation, hole cleaning, reinforcement cage placement, and concrete pouring, and the construction period for a single pile would be as long as 4-6 hours. However, special-shaped solid square piles use prefabricated assembly technology, with the pile body standardized in the factory and directly pressed or hammered into the soil on site using a hydraulic pile driver, improving overall construction efficiency by 50%-80%.
In addition, the "solid + variable cross-section" design of special-shaped square piles significantly enhances their ability to penetrate hard soil layers. In the project geology, silty clay and clayey silt were once considered the "comfort zone" for cast-in-place piles, but special-shaped square piles successfully penetrated these hard layers with their ultra-high pile tip resistance, and the pile integrity testing showed that Class I piles accounted for 98%. This "stronger when encountering strength" construction performance further ensures schedule and cost control.Technology Leads the Future
Upgrade of Pile Foundation Scheme from "Usable" to "Well-Usable"
The success of this project is essentially a leap in pile foundation technology from "meeting basic needs" to "pursuing comprehensive benefits". The special-shaped square pile technology of Zhaodi Holding Group redefines the selection criteria for pile foundation schemes through three-dimensional optimization of "mechanical performance-economic cost-construction efficiency".Compared with cast-in-place piles, its core advantages can be summarized as:- Economy: cost ratio up to 70%, saving nearly 300 yuan per meter of pile length, and reducing pile cap concrete volume by about 50%;- Safety: bearing capacity increased by 10%~30% (longitudinal variable cross-section of the pile body enhances the interlocking effect between the pile and soil, increasing side friction by 10%~30%), and mechanical connection reliability is 100%;- Convenience: construction efficiency improved by 50%-80%, and strong ability to penetrate hard soil layers. Under the "dual carbon" goals and the wave of building industrialization, this prefabricated, low-carbon, and efficient pile foundation technology is becoming a new industry trend. From the practice of the Energy Storage Battery Management System Intelligent Manufacturing Center construction project, the cost saving of nearly 9 million yuan comes not only from the pile body itself but also from "hidden benefits" such as pile cap optimization, shortened schedule, and reduced management costs. This value creation model of "what is saved is net profit" is precisely the core pursuit of technological innovation at Zhaodi Holding Group.
As the construction industry enters the era of refined management, every cost optimization requires the support of technological innovation. Zhaodi Holding Group, with its special-shaped square pile technology as a lever, is not only leveraging the "cost account" of a single project but also driving technological innovation across the entire pile foundation field. This "cost-saving, safe, and fast" pile foundation scheme is rewriting the efficiency logic of engineering construction and injecting new momentum into China's building industrialization.
