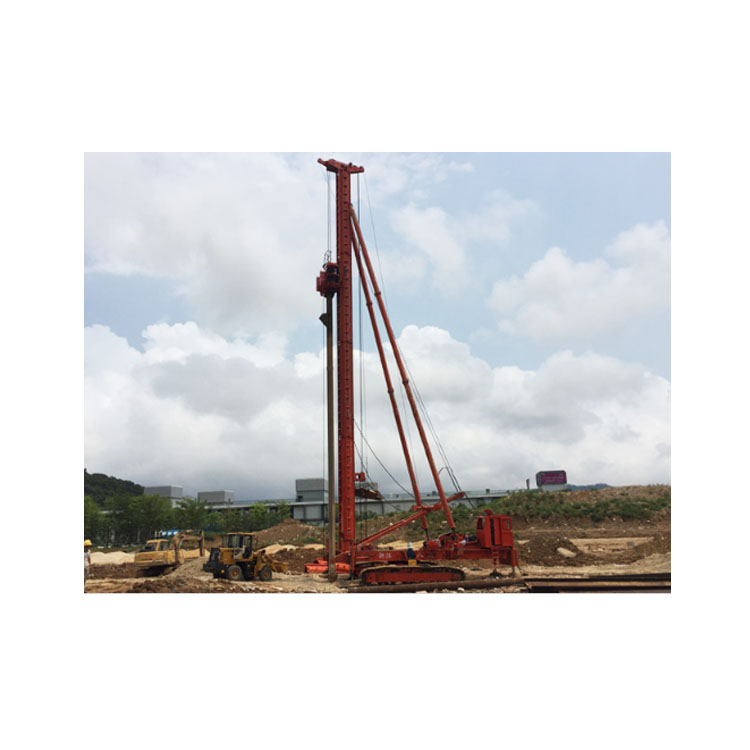

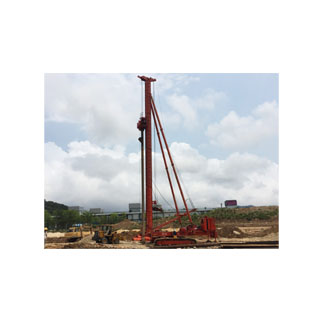

ZJL-200 Crawler-Type Vibratory Driven Casing Cast-in-Place Pile Rig

Product Overview
The ZJL series crawler-type vibratory driven casing cast-in-place pile rig consists of two parts: an electric crawler-type multifunctional pile frame and a vibratory hammer. The pile frame adopts an electric crawler-type traveling mechanism, featuring a high degree of automation, the ability to rotate 180 degrees in both directions, rapid repositioning, and flexible site transfer. By utilizing the exciting force generated by the vibratory hammer and the self-weight of the pile-sinking components to apply pressure to the pile casing for pile-sinking construction, compared with conventional bored cast-in-place piles, the driven casing cast-in-place pile avoids the problems of pile body settlement and insufficient bearing capacity caused by floating soil at the pile tip in conventional bored cast-in-place piles, while also effectively improving the phenomenon of floating slurry on the pile surface.

Product Applications

Suitable for various foundation projects such as driven casing cast-in-place piles, stone columns, and soft foundation treatment, and widely used in the foundation construction of mid- and high-rise buildings and bridges in urban construction, energy, transportation, and other fields.
